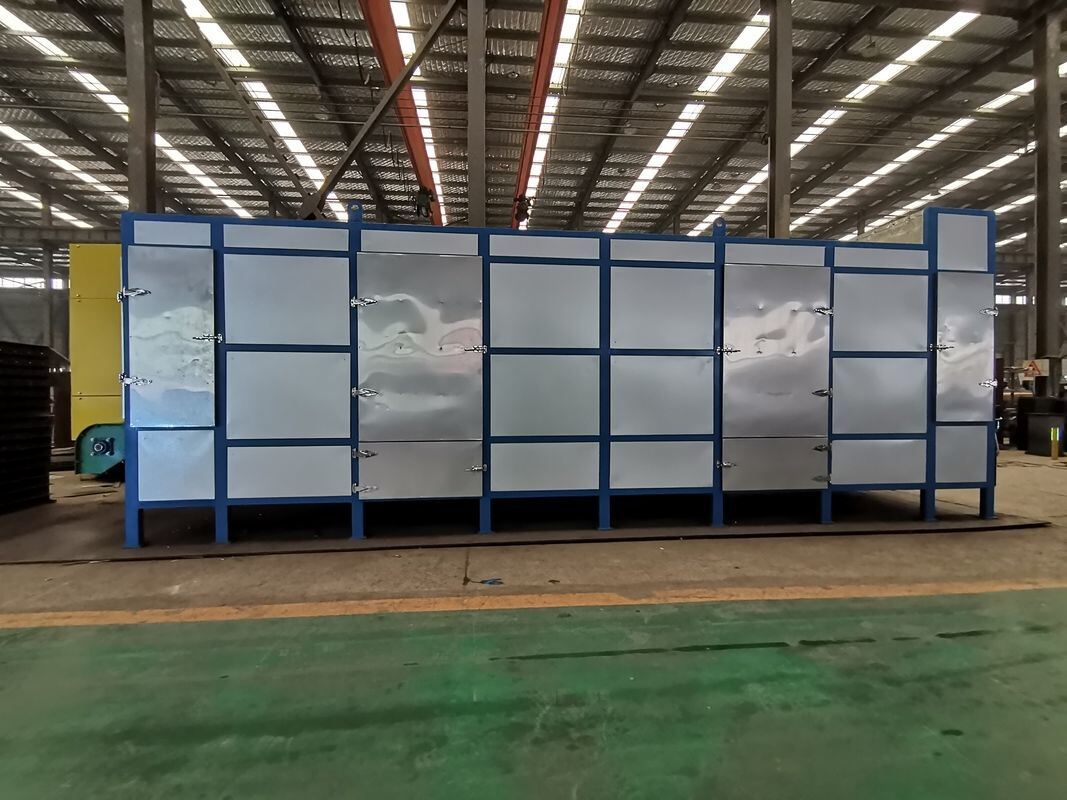

Multi-layer stainless steel mesh belt conveying structure continuous low-temperature drying
Company Profile
Zhengzhou Wangu Machinery Co., Ltd., founded in 1998, is a National High-tech Enterprise specializing in R&D and manufacturing of grain drying, material drying and storage equipment. Located at No.113 Anyang Road, Shangjie District, Zhengzhou, Henan, the company covers over 26,000 square meters of modern production facilities, with products exported to over 50 countries in Southeast Asia, Africa, and South America.
With 26 years of technical accumulation, Wangu Machinery has formed a complete drying equipment product line, covering circulating dryers, continuous drying towers, rotary drum dryers, rotary tube bundle dryers, belt dryers and more, providing customized drying solutions for customers across various industries.
Product Overview
The Belt Dryer Machine is a continuous drying equipment that uses multi-layer (or single-layer) stainless steel mesh belts as material carriers, with hot air penetrating the material layer for efficient drying. Wangu Machinery offers two series: DWG Series Multi-layer Belt Dryer and WGDH Series Single-layer Belt Dryer, meeting various capacity and drying process requirements.
The DWG series features a 3-layer mesh belt structure where materials fall layer by layer with counter-flow hot air penetration, suitable for large-volume continuous drying; the WGDH series is a single-layer stainless steel structure, ideal for food-grade and pharmaceutical-grade applications with special material requirements.
Main Applications
|
Application
|
Process Features
|
|
Dehydrated Vegetable Drying
|
Low-temperature slow drying of sliced/striped vegetables, preserving color and nutrition
|
|
Chinese Herbal Medicine Drying
|
Precise temperature-controlled drying of herbal medicine slices, preserving active ingredients
|
|
Food Baking / Curing
|
Not only drying but also baking, roasting or curing processes
|
|
Chemical Catalyst Drying
|
Drying of granular/flake chemical products without breakage or pulverization
|
|
Agricultural Product Processing
|
Continuous drying of grains, fruit slices, mushrooms and other agricultural products
|
DWG Series Multi-layer Belt Dryer Specifications
The DWG series features a 3-layer mesh belt structure with steam heat exchange, suitable for large-volume continuous drying. 6 standard models cover different capacity requirements.
|
Model
|
Units
|
Belt Width
|
Drying Length
|
(kgH₂O/h)
|
(kg/h)
|
(㎡)
|
(kW)
|
(kW)
|
L×W×H(m)
|
(kg)
|
|
DWG3×6/1.2
|
4×3
|
1.2
|
6×3
|
120–400
|
310–550
|
750
|
21
|
26.5
|
7.8×2.2×4.5
|
4600×3
|
|
DWG3×8/1.2
|
4×3
|
1.2
|
8×3
|
150–450
|
350–590
|
820
|
30.8
|
35.3
|
9.8×2.2×4.5
|
4700×3
|
|
DWG3×10/1.2
|
5×3
|
1.2
|
10×3
|
220–550
|
400–700
|
1000
|
37.4
|
41.9
|
11.8×2.2×4.5
|
5700×3
|
|
DWG3×8/1.6
|
4×3
|
1.6
|
8×3
|
230–600
|
450–850
|
1060
|
42
|
46.5
|
9.8×2.6×4.7
|
5500×3
|
|
DWG3×10/1.6
|
5×3
|
1.6
|
10×3
|
290–750
|
480–970
|
1320
|
51
|
55.5
|
11.8×2.6×4.7
|
6500×3
|
|
DWG3×8/2.0
|
4×3
|
2.0
|
8×3
|
290–750
|
480–970
|
1350
|
56
|
60.5
|
9.8×3.1×4.9
|
6450×3
|
WGDH Series Single-layer Belt Dryer Parameters
The WGDH series is a single-layer stainless steel mesh belt structure, suitable for food-grade and pharmaceutical-grade applications with strict hygiene requirements, with a wider temperature range (50–200°C).
|
Parameter
|
Value
|
|
Model
|
WGDH 1-5
|
|
Capacity
|
1000 kg/h
|
|
Belt Width
|
1000 mm (1m)
|
|
Belt Speed
|
0.5–5 m/min( Adjustable)
|
|
Temperature Range
|
50–200°C
|
|
Drying Time
|
30–60 /minutes
|
|
Material
|
Stainless Steel
|
|
Control System
|
P Full automatic
|
|
Cooling Method
|
Air cooling
|
|
Voltage
|
220V / 380V
|
Core Features & Advantages
|
No.
|
Feature
|
Description
|
|
1
|
No Material Breakage
|
Materials receive only gentle vibration on the belt, no breakage or pulverization, suitable for fragile materials
|
|
2
|
Multi-function
|
Not only drying but also baking, roasting or curing, multi-function maximizing ROI
|
|
3
|
Precise Control
|
Air volume, temperature, residence time and feed speed all precisely adjustable for optimal drying
|
|
4
|
Uniform Air Distribution
|
Unique air distribution device ensures uniform hot air, consistent drying quality across all layers
|
|
5
|
High Energy Efficiency
|
Most air is recycled, large heat exchange area, 20–30% energy saving vs traditional dryers
|
|
6
|
Flexible Heat Sources
|
Steam, thermal oil, electric, coal/oil furnace, gas/biomass all compatible, adapting to global energy conditions
|
|
7
|
High Automation
|
PLC full-automatic control, one-button start, automatic monitoring, low labor intensity
|
|
8
|
Easy Maintenance
|
Simple structure, easy installation, long-term operation, convenient use and maintenance
|
|
9
|
Easy Cleaning
|
Bottom sliding plates and easy-open cleaning doors for convenient powder removal
|
|
10
|
Hygienic & Safe
|
WGDH series full stainless steel meets food-grade and pharmaceutical-grade hygiene standards
|
